Angled Spanner

Catagories

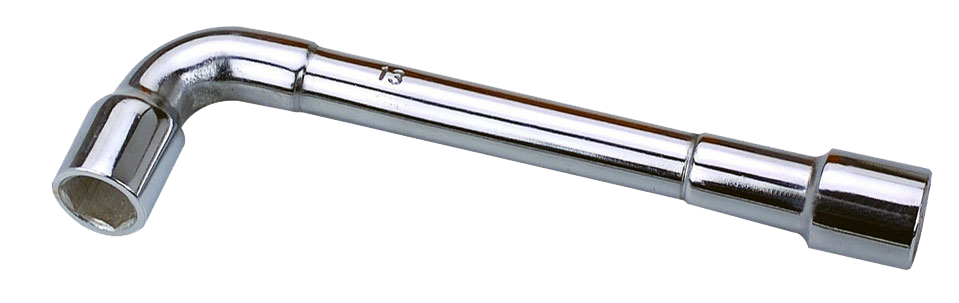

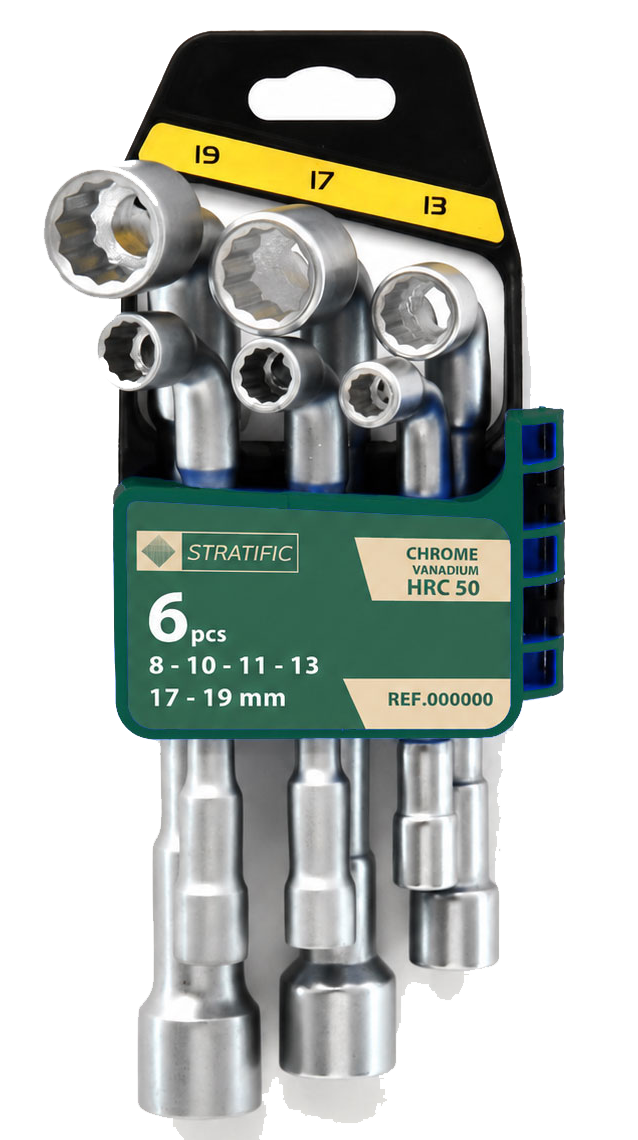

S1007 Angled Socket Wrench / L-Type Spanner
S1007 Angled Socket Wrench / L-Type Spanner
S1007 Angled Socket Wrench / L-Type Spanner
  • Material: Carbon Steel (S1008 | Chrome Vanadium 31CrV3 also available)
  • Finish: Chrome/Mirror-like Finish, Nickel Chrome, Satin and Powder Coated Black Finish also available
  • Design: Elbow Milled / Plain Angle, 6 x 12-pt (Hex x Bi-hex) w/ Through-Hole on Short Elbow.
    6 x 6-pt (Hex x Hex) also available
  • Treatment: Drop Forged, Hardened & Tempered Sockets, Nickel Chrome Plated
Item No. Size mm Length mm Weight g Qty./Carton Pcs.
S1007-6 6 105 65 180
S1007-7 7 110 70 180
S1007-8 8 120 80 160
S1007-9 9 125 85 160
S1007-10 10 130 105 120
S1007-11 11 135 115 120
S1007-12 12 140 145 80
S1007-13 13 150 170 80
S1007-14 14 160 185 60
S1007-15 15 170 215 60
S1007-16 16 185 240 60
S1007-17 17 195 275 40
S1007-18 18 210 345 40
S1007-19 19 215 385 40
S1007-20 20 220 490 30
S1007-21 21 230 550 30
S1007-22 22 245 550 40
S1007-23 23 255 715 20
S1007-24 24 265 750 20
S1007-25 25 275 795 20
S1007-26 26 285 885 20
S1007-27 27 295 890 20
S1007-28 28 315 920 12
S1007-29 29 320 1120 12
S1007-30 30 330 1220 12
S1007-32 32 355 1470 12
S1007-34 34 365 1620 12
S1007-36 36 375 1755 12

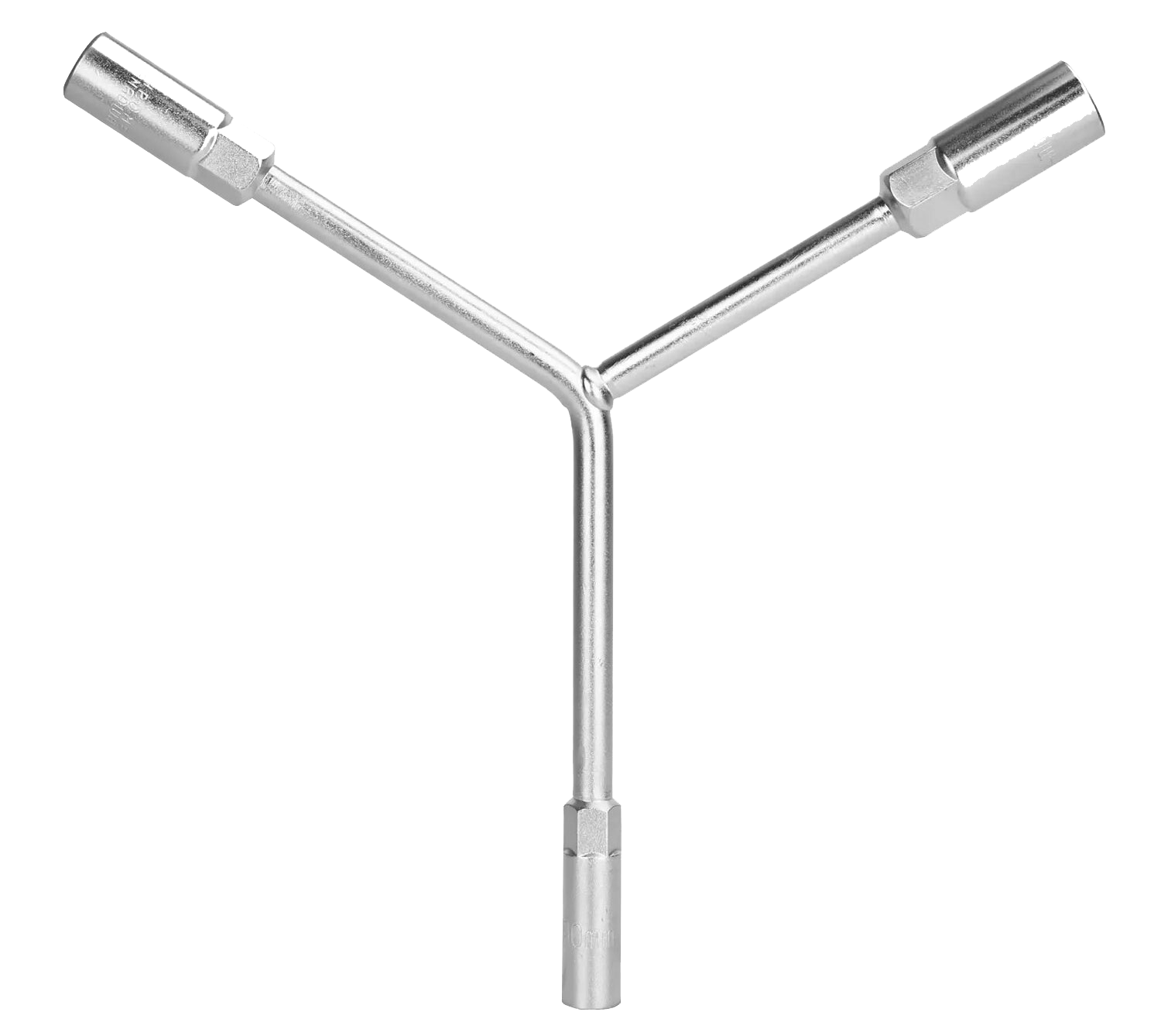

S1009 Y-Type Spanner / Y-Handle Socket Wrench
S1009 Y-Type Spanner / Y-Handle Socket Wrench
  • Material: Chrome Vanadium 31CrV3 (S1010 | Carbon Steel also available)
  • Finish: Chrome/Mirror-like Finish, Nickel Chrome, Zinc Plated, Satin, Satin Gold,
    Powder Coated Black Finish also available
  • Design: Y shaped, Ergonomically Designed
  • Treatment: Drop Forged, Hardened & Tempered Sockets, Nickel Chrome Plated
Item No. Size mm Length mm Weight g Qty./Carton Pcs.
S1009-Y1 8 x 10 x 12 225 200 50
S1009-Y2 10 x 11 x 13 225 200 50
S1009-Y3 10 x 12 x 14 225 200 50
Customization

Packaging: Individual/Bulk Packaging in Carton/Clip/Pouch/Kit Roll/Hanger/Foam Tray/Blister/Display Box/Shrink Wrap/Header Card as per requirement.

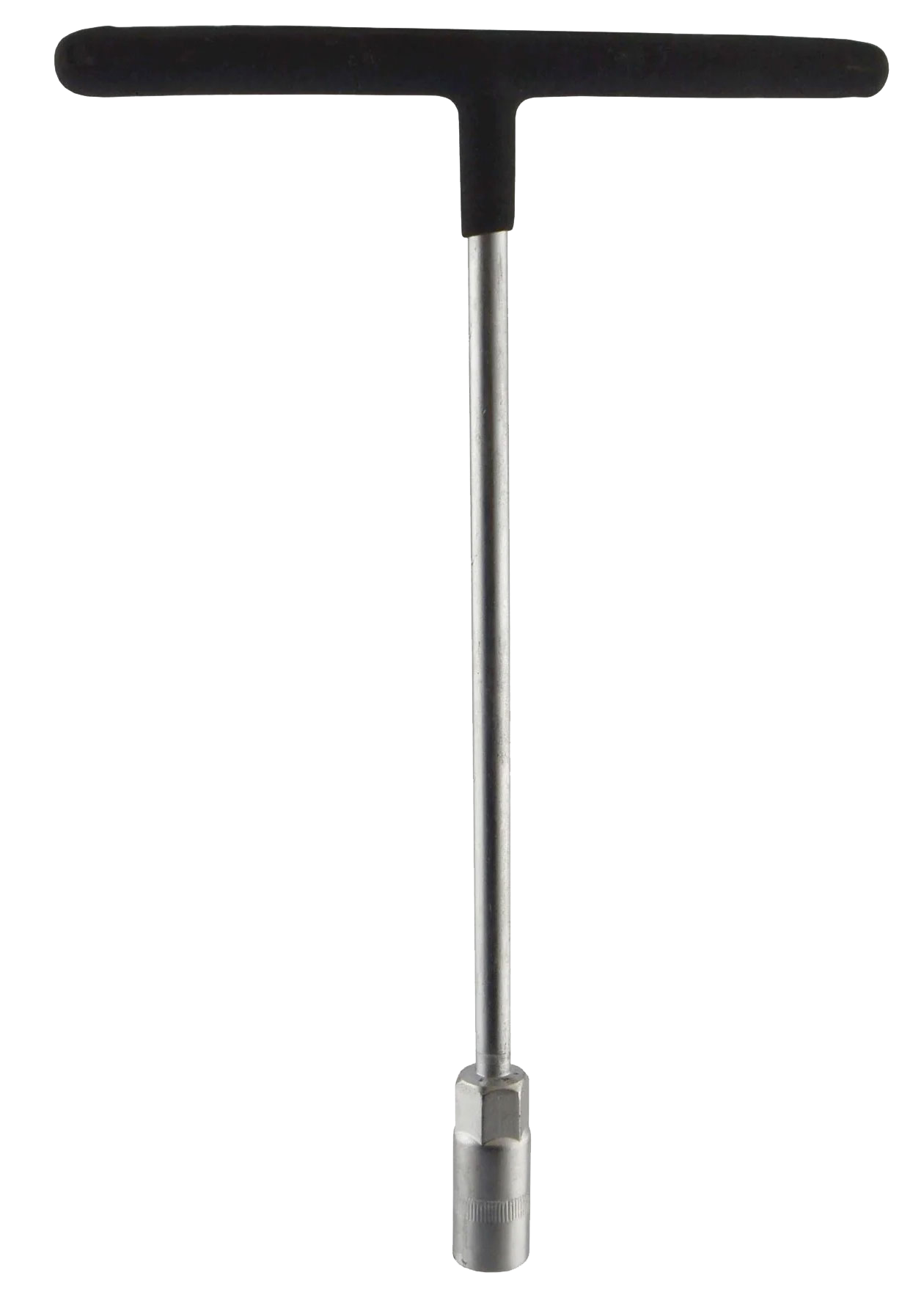

S1011 T-Type Spanner / T-Handle Socket Wrench
S1011 T-Type Spanner / T-Handle Socket Wrench
  • Material: Chrome Vanadium 31CrV3 (S1012 | Carbon Steel also available)
  • Finish: Chrome/Mirror-like Finish, Nickel Chrome, Zinc Plated, Satin, Satin Gold,
    Powder Coated Black Finish also available
  • Design: T shaped, Dip Insulation Handle Grip / Sleeve
  • Treatment: Drop Forged, Hardened & Tempered Sockets, Nickel Chrome Plated
Item No. Size mm Length mm Weight g Qty./Carton Pcs.
S1011-6 6 250 280 72
S1011-7 7 250 280 72
S1011-8 8 250 280 72
S1011-9 9 250 280 72
S1011-10 10 250 280 72
S1011-11 11 250 280 72
S1011-12 12 250 300 72
S1011-13 13 250 300 72
S1011-14 14 250 300 72
S1011-15 15 250 310 72
S1011-16 16 250 310 72
S1011-17 17 250 330 60
S1011-18 18 250 330 60
S1011-19 19 250 330 60
S1011-20 20 250 420 60
S1011-21 21 250 420 60
S1011-22 22 250 420 60
S1011-23 23 250 450 50
S1011-24 24 250 450 50

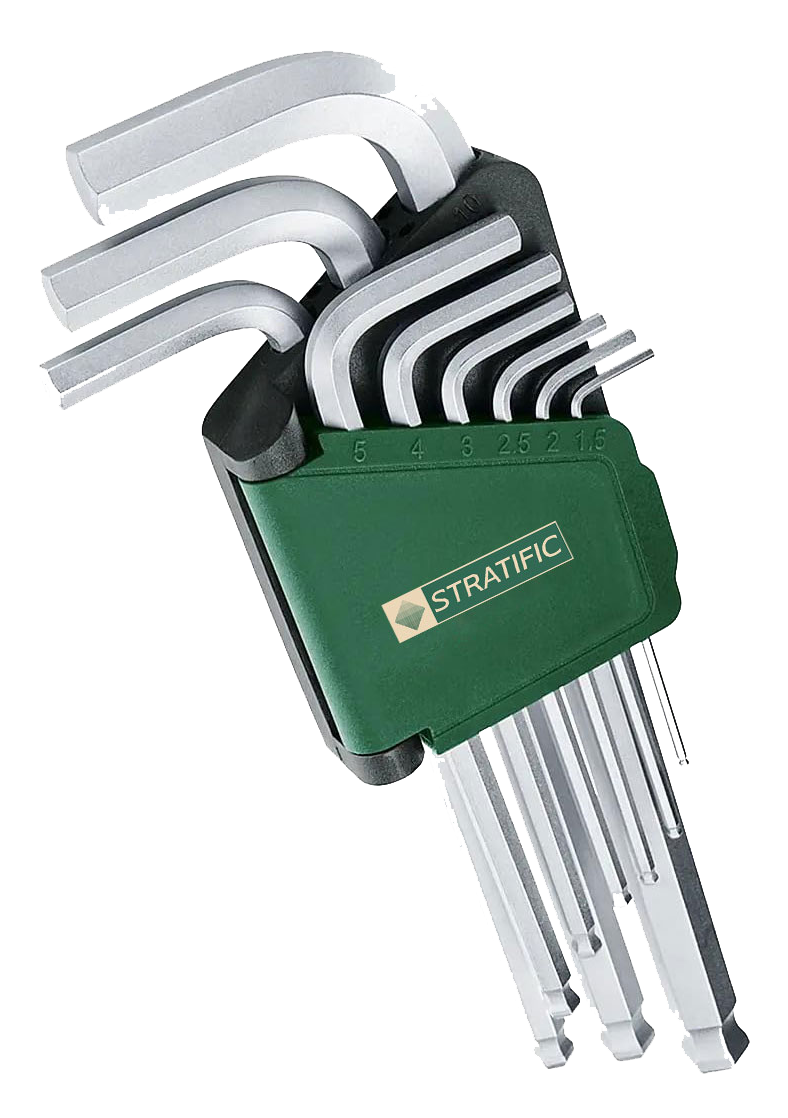

S1025 Allen Wrench / Hex Key
S1025 Allen Wrench / Hex Key
  • Material: Chrome Vanadium 31CrV3 (S1026 | Carbon Steel also available)
  • Finish: Satin Finish. Black Finish also available
  • Design: Hex, Ball Point, Star / Torx also available
  • Treatment: Drop Forged, Hardened & Tempered, Nickel Chrome Plated
Item No. Size mm Size in Weight g Qty./Carton Pcs.
S1025-1.5 1.5 1/16 2 100
S1025-2 2 5/64 2 100
S1025-2.5 2.5 3/32 3 100
S1025-3 3 1/8 5 100
S1025-4 4 5/32 10 100
S1025-5 5 3/16 20 100
S1025-6 6 7/32 30 50
S1025-7 7 1/4 40 25
S1025-8 8 5/16 60 25
S1025-10 10 3/8 105 10
S1025-12 12 1/2 170 10
S1025-14 14 9/16 190 10
S1025-17 17 5/8 250 10
S1025-19 19 - 280 10
S1025-22 22 - 320 5
S1025-24 24 - 350 1
S1025-27 27 - 400 1
S1025-32 32 - 460 1
S1025-36 36 - 580 1

Short, Long, Extra Long lengths available in most sizes

Customization

Packaging: Individual/Bulk Packaging in Carton/Clip/Pouch/Kit Roll/Hanger/Foam Tray/Blister/Display Box/Shrink Wrap/Header Card as per requirement.
