| Item No. | Size (mm) | Size (in) | Length (L) (mm) | Opening (O) (mm) | Height (H) (mm) | Jaw Dimension (mm) | Qty./Carton (Pcs.) | Weight/Carton (Fixed Base) (kg) | Weight/Carton (Swivel Base) (kg) |
|---|---|---|---|---|---|---|---|---|---|

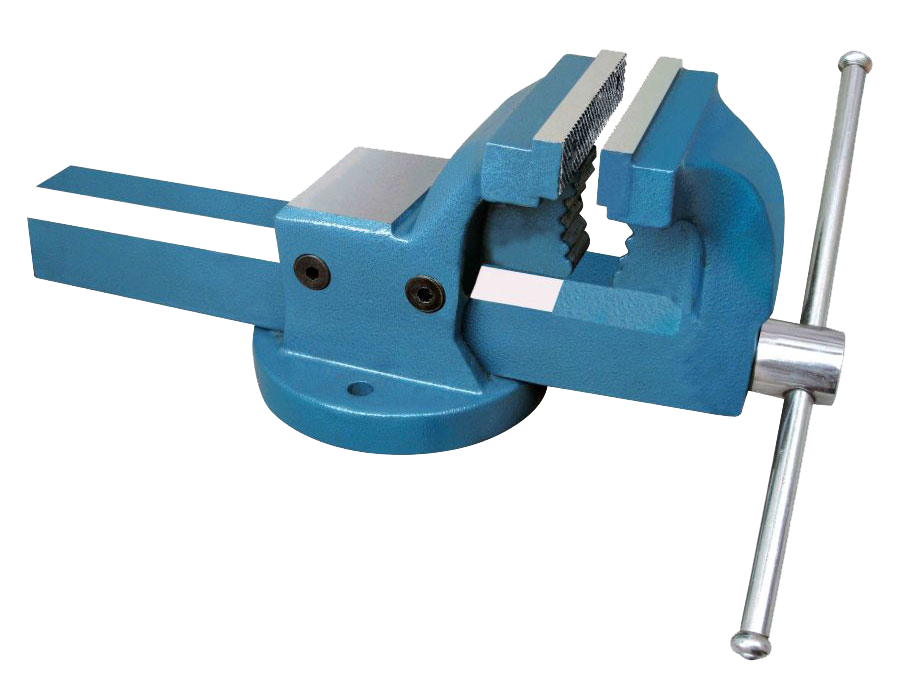

| SV100-100 | 100 | 4 | 100 | 120 | 65 | 100 x 10 x 18 | 2 | 15 | 17 |
| SV100-125 | 125 | 5 | 125 | 160 | 80 | 125 x 12 x 21 | 1 | 13 | 14 |
| SV100-150 | 150 | 6 | 150 | 200 | 105 | 150 x 12 x 23 | 1 | 20 | 22 |
| SV100-180 | 180 | 7 | 180 | 210 | 115 | 180 x 12 x 23 | 1 | 30 | 33 |
| Item No. | Size (mm) | Size (in) | Length (L) (mm) | Opening (O) (mm) | Height (H) (mm) | Offset Angle (degrees) | Qty./Carton (Pcs.) | Weight/Carton (kg) |
|---|---|---|---|---|---|---|---|---|

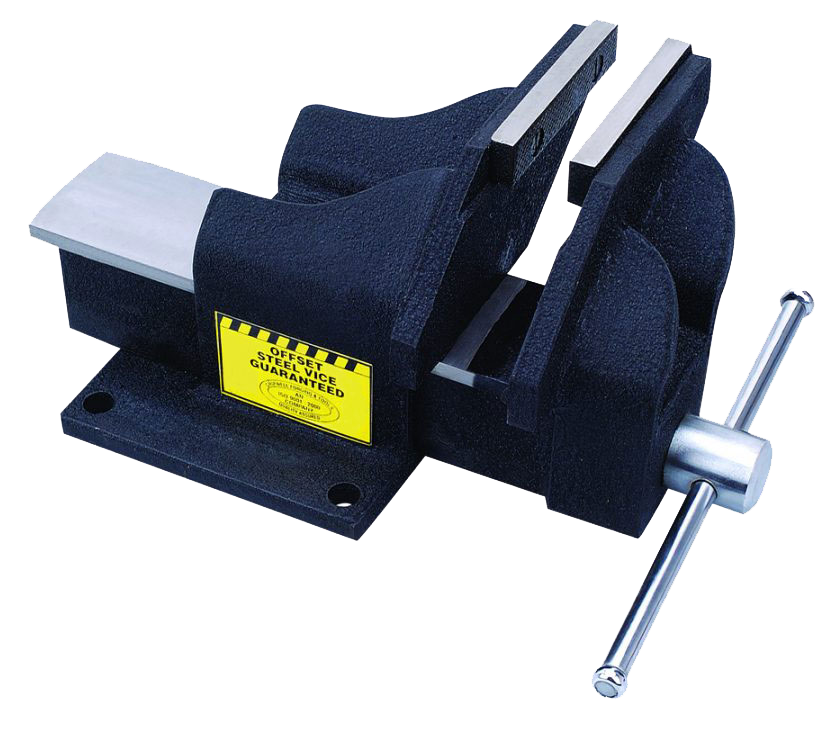

| SV101-100 | 100 | 4 | 100 | 135 | 80 | 35° | 1 | 10 |
| SV101-150 | 150 | 6 | 150 | 180 | 100 | 35° | 1 | 19 |
| SV101-200 | 200 | 8 | 200 | 280 | 125 | 35° | 1 | 34 |
| Item No. | Size (mm) | Size in | Length (L) mm | Opening (O) mm | Height (H) mm | Jaw Dimension mm | Qty./Carton Pcs. | Weight/Carton (Fixed Base) kg | Weight/Carton (Swivel Base) kg |
|---|---|---|---|---|---|---|---|---|---|

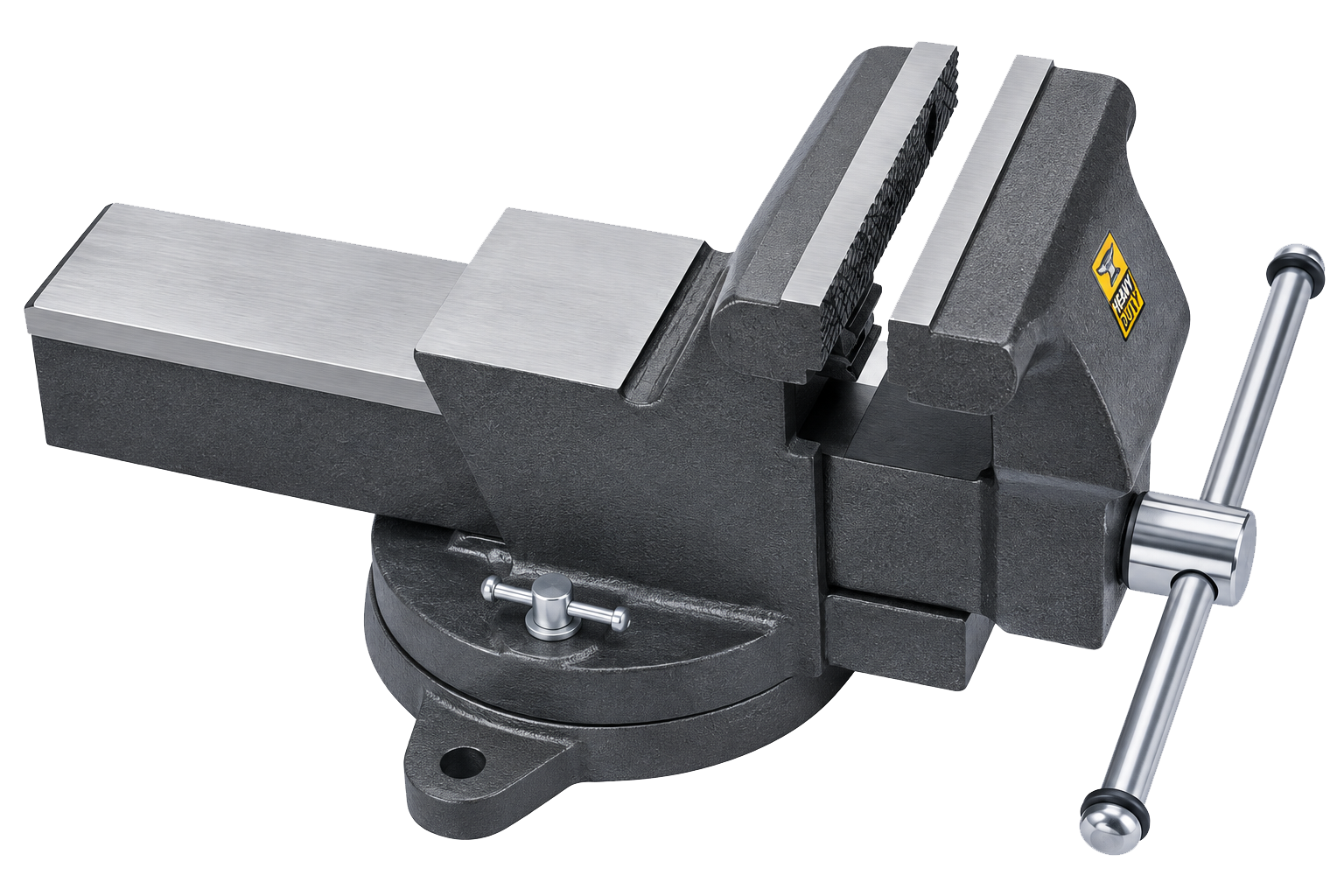

| SV102-100 | 100 | 4 | 100 | 115 | 60 | 100 x 10 x 18 | 2 | 17 | 18 |
| SV102-125 | 125 | 5 | 125 | 135 | 70 | 125 x 12 x 23 | 1 | 13 | 14 |
| SV102-150 | 150 | 6 | 150 | 165 | 80 | 150 x 12 x 23 | 1 | 18 | 20 |
| SV102-180 | 180 | 7 | 180 | 210 | 134 | 180 x 12 x 23 | 1 | 24 | 27 |
| Item No. | Size mm | Size in | Length (L) mm | Opening (O) mm | Height (H) mm | Jaw Dimension mm | Qty./Carton Pcs. | Weight/Carton kg |
|---|---|---|---|---|---|---|---|---|

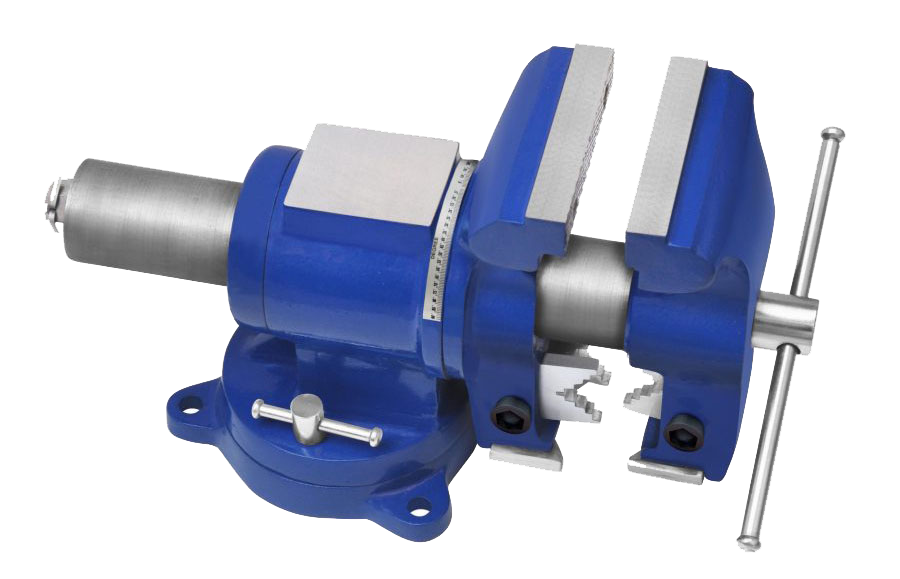

| SV103-100 | 100 | 4 | 110 | 115 | 70 | 110 x 13 x 23 | 1 | 17 |
| SV103-125 | 125 | 5 | 135 | 135 | 85 | 135 x 13 x 23 | 1 | 20 |
| SV103-150 | 150 | 6 | 160 | 145 | 90 | 160 x 13 x 23 | 1 | 24 |
