Wheel Spanner

Catagories

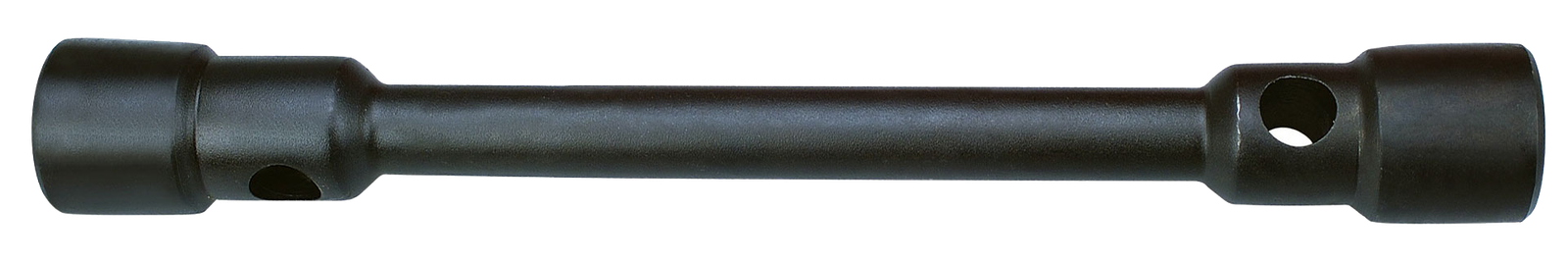

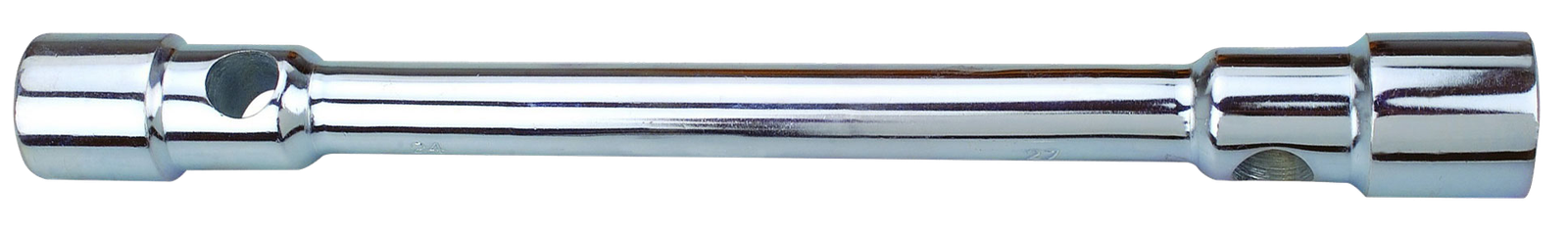

S1000 Two-Way Wheel Spanner
S1000 Two-Way Wheel Spanner
S1000 Two-Way Wheel Spanner
  • Material: Carbon Steel (S1001 | Chrome Vanadium 31CrV3 also available)
  • Finish: Chrome/Mirror-like Finish, Nickel Chrome, Zinc Coated and Powder Coated Black Finish also available
  • Specifications: Meets or exceeds DIN 899 standards
  • Treatment: Drop Forged, Hardened & Tempered Sockets, Nickel Chrome Plated
  • Tommy Bar: Optional
Item No. Size mm Length mm Weight g Qty./Carton Pcs.
S1000-1921 19 x 21 400 1900 8
S1000-2238 22 x 38 400 2160 8
S1000-2427 24 x 27 400 1950 8
S1000-2730 27 x 30 400 1950 8
S1000-2732 27 x 32 400 1980 8
S1000-2733* 27 x 33 400 1965 8
S1000-2738 27 x 38 400 2280 8
S1000-2833 28 x 33 400 2810 8
S1000-3032* 30 x 32 400 2100 8
S1000-3033 30 x 33 400 2100 8
S1000-3233* 32 x 33 400 2100 8
S1000-3236 32 x 36 400 2280 8
S1000-3238 32 x 38 400 2280 8
S1000-1732 17 x 32 400 2115 8
S1000-1735 17 x 35 400 2285 8
S1000-1941 19 x 41 400 2300 8
S1000-2138 21 x 38 400 2380 8
S1000-2141 21 x 41 400 2380 8
S1000-2238 22 x 38 400 2380 8

*Also available in 250 mm length

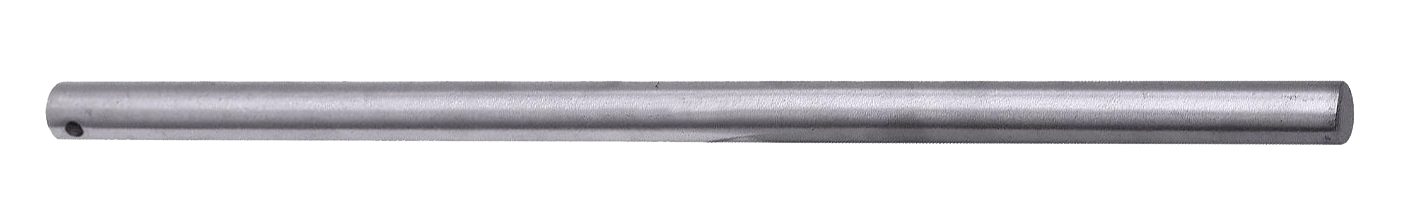

S1002 Tommy Bar
S1002 Tommy Bar
  • Material: High Grade Steel (S1003 | Chrome Vanadium 31CrV3 also available)
  • Finish: Satin Finish. Chrome/Mirror-like Finish also available
  • Treatment: Drop Forged, Hardened & Tempered, Nickel Chrome Plated
Item No. Size mm Length mm Weight g Qty./Carton Pcs.
S1002-18 18 500 1100 20
S1002-20 20 600 1850 10

Length can be customized as per requirement

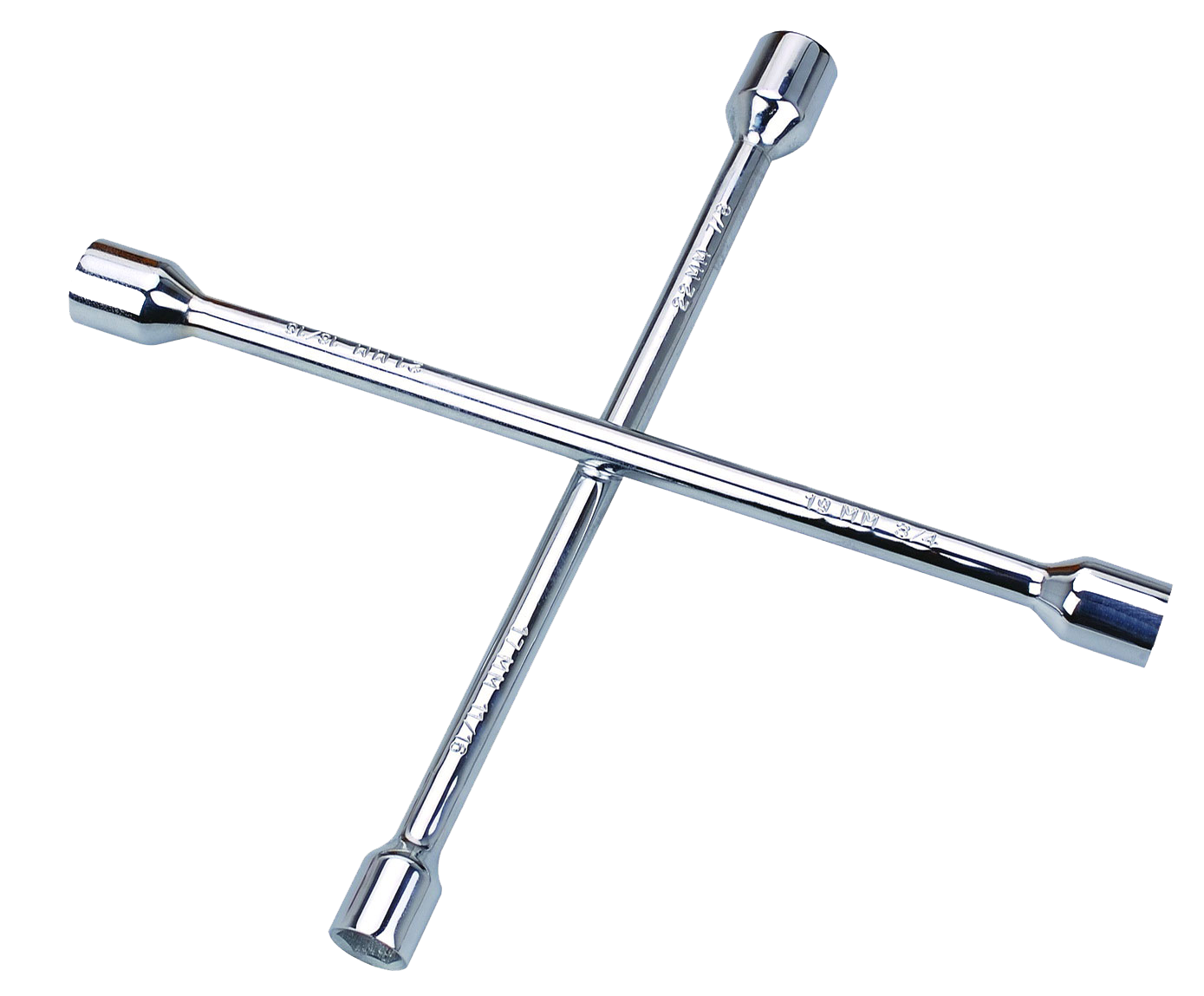

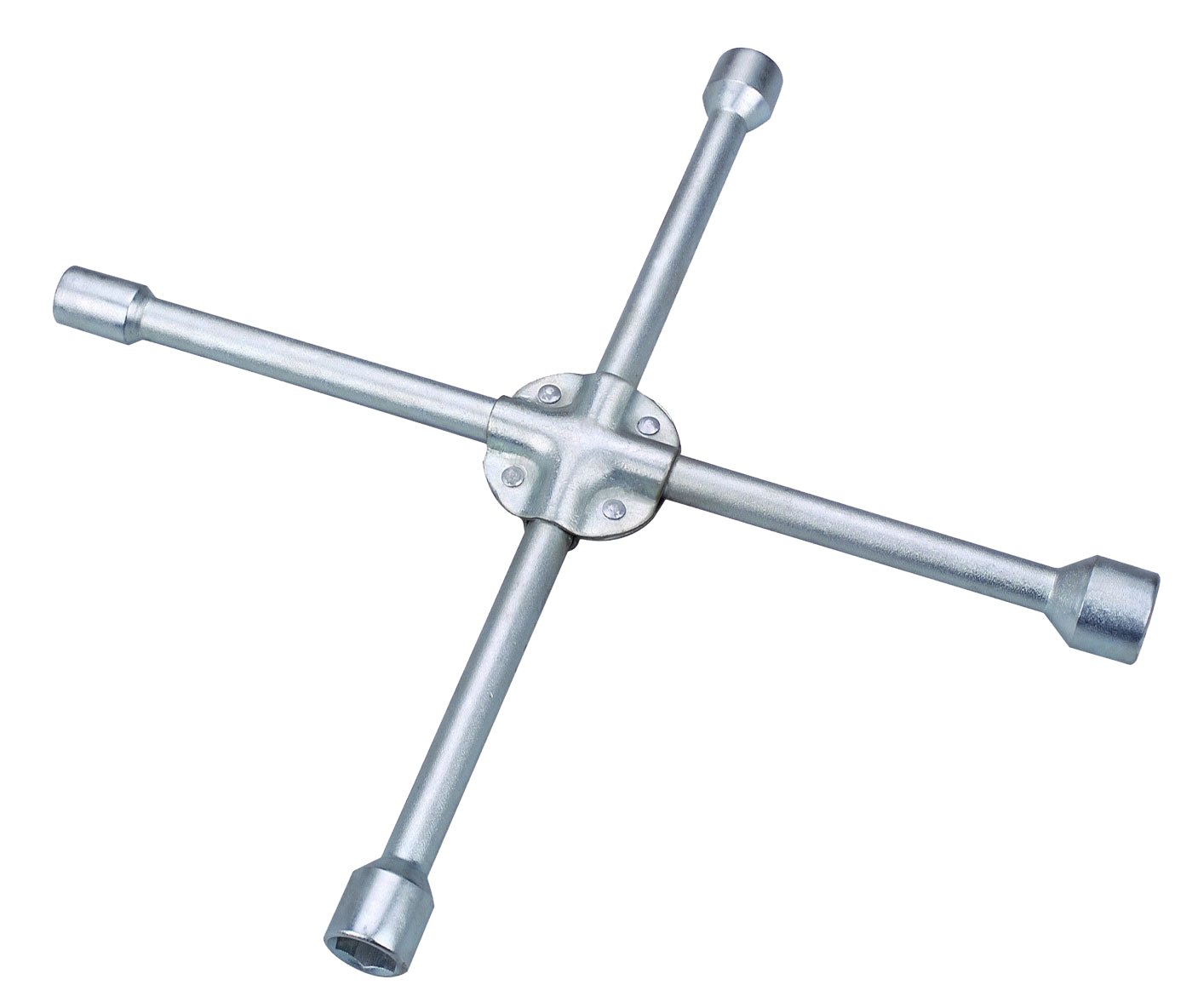

S1004 Four-Way Cross Wheel Spanner
S1004 Four-Way Cross Wheel Spanner
S1004 Four-Way Cross Wheel Spanner
  • Material: Carbon Steel (S1005 | Chrome Vanadium 31CrV3 also available)
  • Finish: Chrome/Mirror-like Finish, Nickel Chrome, Zinc Plated, Satin, Satin Gold, Powder Coated Black Finish also available
  • Design: With / Without Reinforcement
  • Treatment: Drop Forged, Hardened & Tempered Sockets, Nickel Chrome Plated
Item No. Size mm Length mm Weight g Qty./Carton Pcs.
S1004-CW1 17 x 19 x 21 x 22 350 x 14 1062 16
S1004-CW2 17 x 19 x 21 x 23 350 x 14 1062 16
S1004-CW3 17 x 19 x 13/16 x 22 350 x 14 1062 16
S1004-CW4 17 x 19 x 21 x 1/2 350 x 14 1062 16
S1004-CW5 11/16 x 3/4 x 13/16 x 7/8 500 x 16 1833 22
S1004-CW6 22 x 24 x 27 x 32 500 x 16 1833 22

Customized Length available - 325, 350, 375, 400 & 500 mm

Customized Diameter available - 13, 14, 15, 16, 18, 20 mm

Customization:

Packaging: Individual/Bulk Packaging in Carton/Clip/Pouch/Kit Roll/Hanger/Foam Tray/Blister/Display Box/Shrink Wrap/Header Card as per requirement

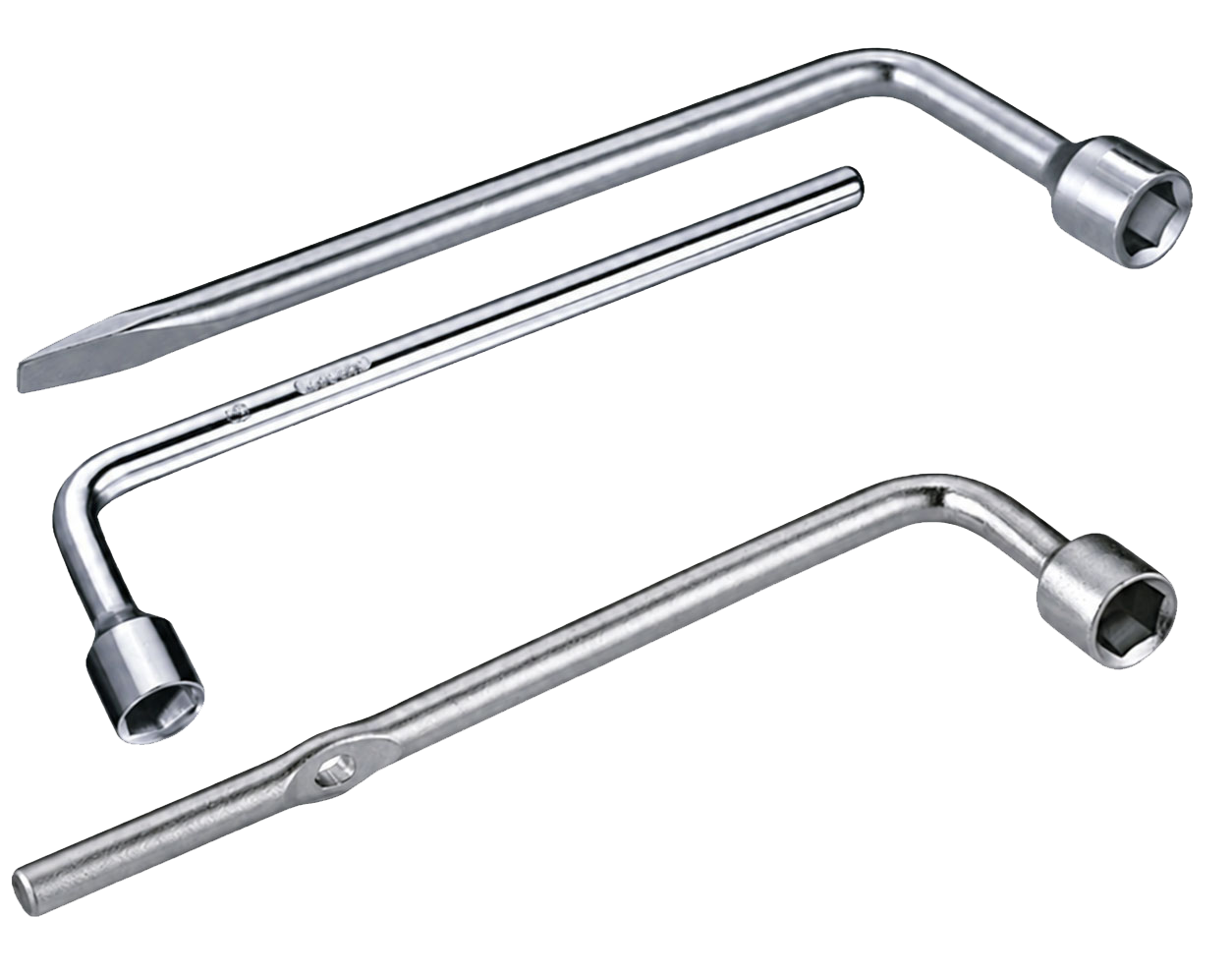

S1006 L-Type Wheel Spanner
S1006 L-Type Wheel Spanner
  • Material: Carbon Steel
  • Finish: Chrome/Mirror-like Finish, Nickel Chrome and Powder
    Coated Black Finish also available
  • Design: With Tyre Lever / Without Tyre Lever / Option for Jack Rod
  • Treatment: Drop Forged, Hardened & Tempered Sockets, Nickel Chrome Plated
Item No. Size mm Length mm Weight g Qty./Carton Pcs.
S1006-13 13 325 x 13 400 60
S1006-14 14 350 x 14 420 60
S1006-17 17 350 x 14 460 60
S1006-19 19 350 x 14 460 60
S1006-21 21 350 x 14 460 60
S1006-22 22 350 x 14 500 60

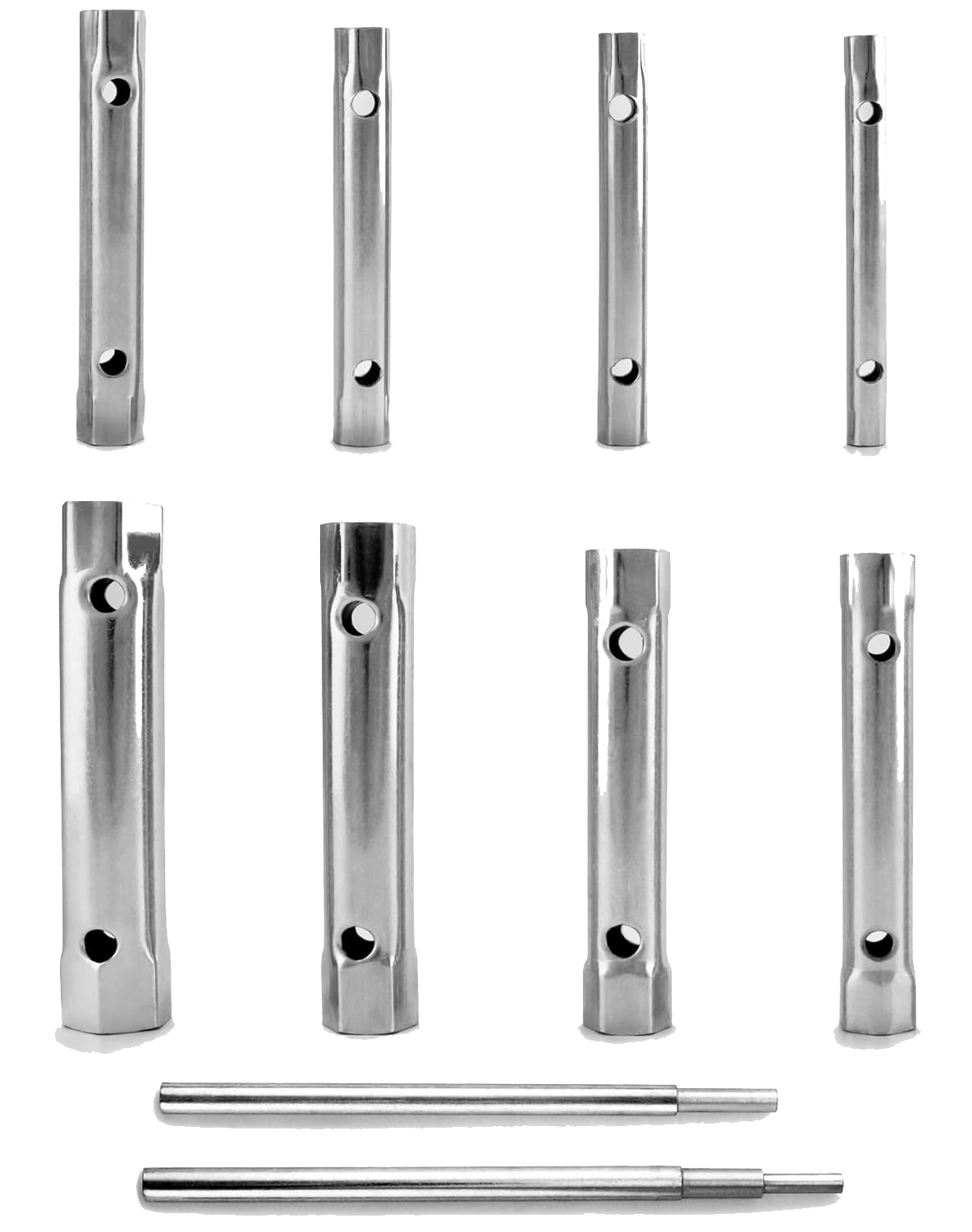

S1013 Tubular Box Spanner
S1013 Tubular Box Spanner
  • Material: Carbon Steel
  • Finish: Satin Finish, Nickel Chrome, Zinc Coated and Powder Coated Black Finish also available
  • Specifications: Meets or exceeds DIN 896 standards
  • Treatment: Drop Forged, Hardened & Tempered Sockets, Nickel Chrome Plated
  • Tommy Bar: Optional
Item No. Size mm Length mm Weight g Qty./Carton Pcs.
S1013-67 6 x 7 105 38 300
S1013-89 8 x 9 105 40 300
S1013-810 8 x 10 120 44 300
S1013-1011 10 x 11 120 64 200
S1013-1213 12 x 13 140 80 160
S1013-1415 14 x 15 140 90 160
S1013-1617 16 x 17 150 115 120
S1013-1719 17 x 19 155 165 120
S1013-1819 18 x 19 155 165 100
S1013-2022 20 x 22 165 238 80
S1013-2123 21 x 23 165 290 60
S1013-2224 22 x 24 180 300 60
S1013-2426 24 x 26 180 370 40
S1013-2427 24 x 27 180 370 40
S1013-2528 25 x 28 195 410 40
S1013-2732 27 x 32 200 415 40
S1013-3032 30 x 32 200 415 40
S1013-3236 32 x 36 215 605 20
S1013-3641 36 x 41 220 700 20
S1013-4146 41 x 46 235 820 20
S1013-4650 46 x 50 240 950 20
S1013-5055 50 x 55 240 1000 15
S1013-5560 55 x 60 240 1150 15
Customization

Packaging: Individual/Bulk Packaging in Carton/Clip/Pouch/Kit Roll/Hanger/Foam Tray/Blister/Display Box/Shrink Wrap/Header Card as per requirement
